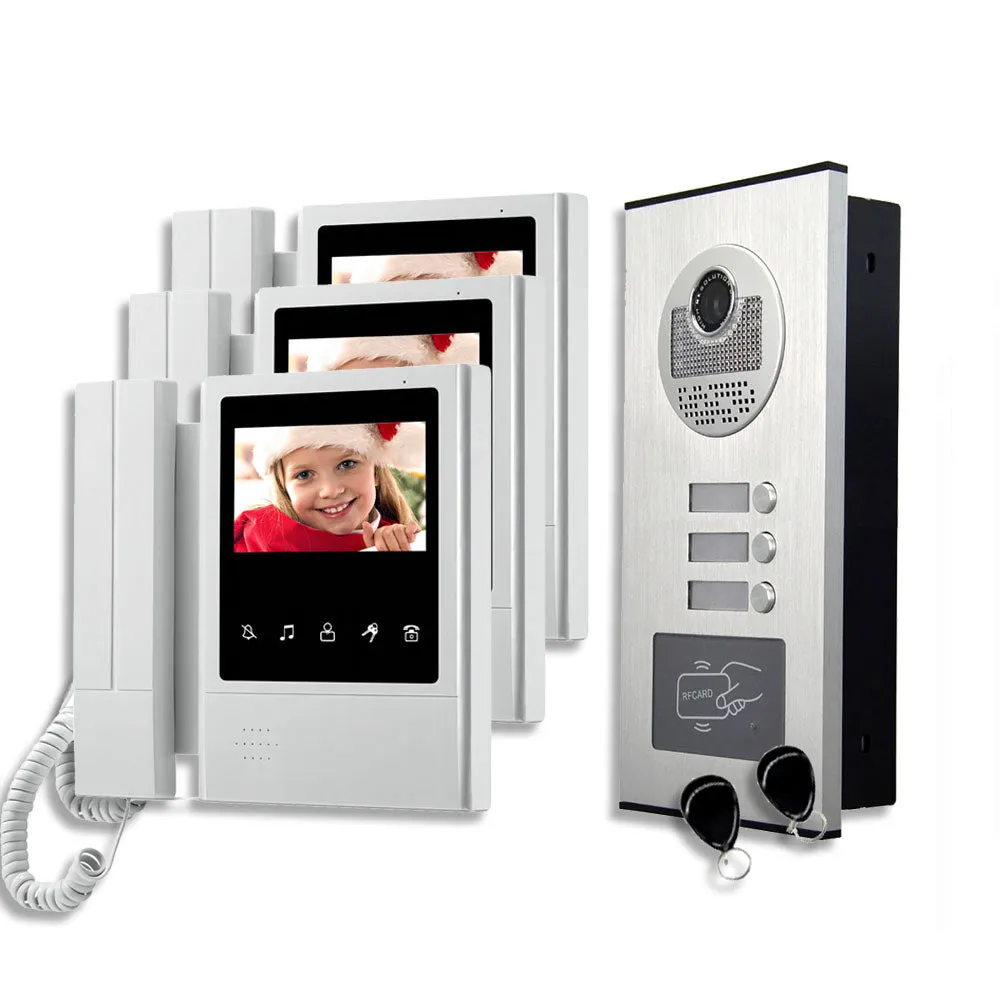

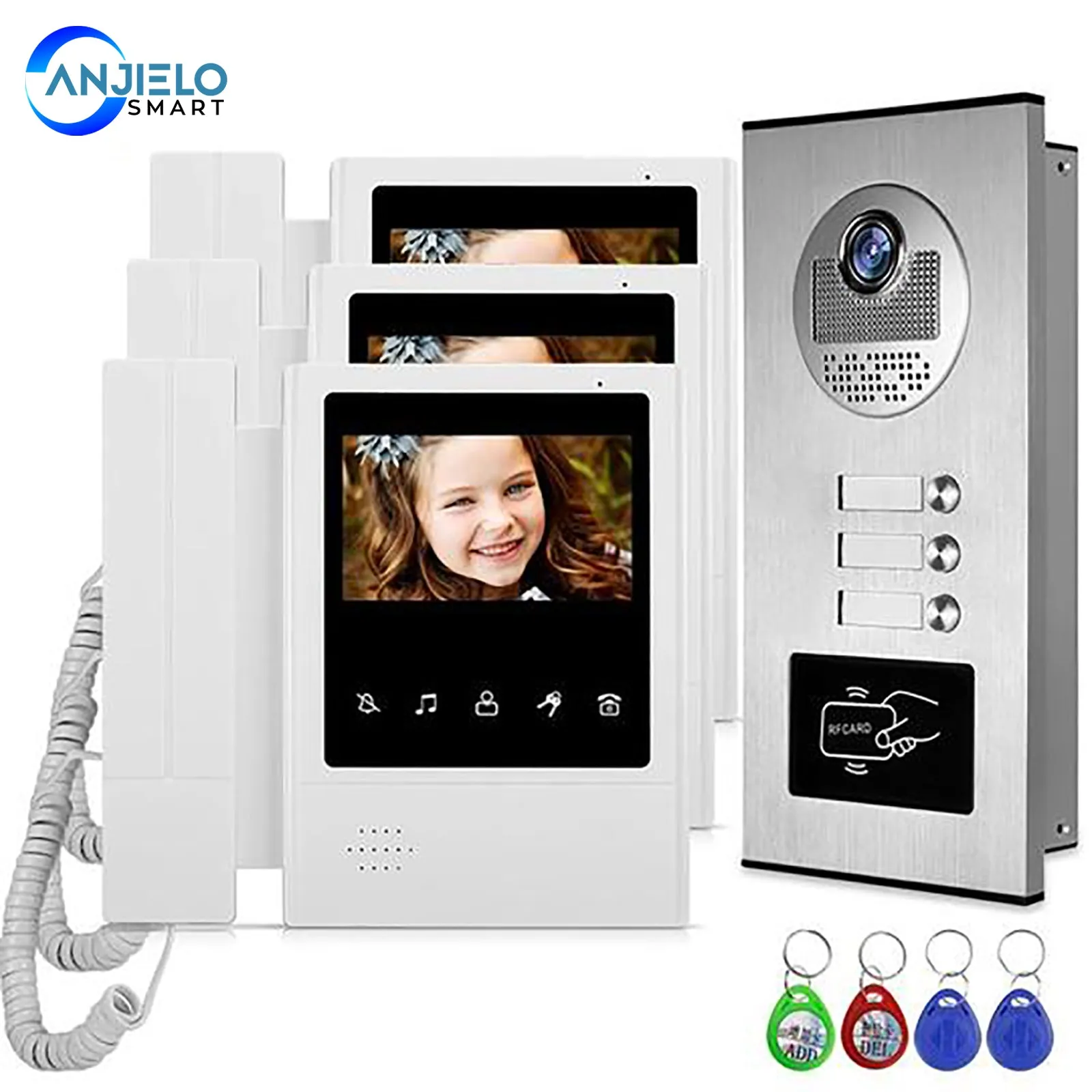

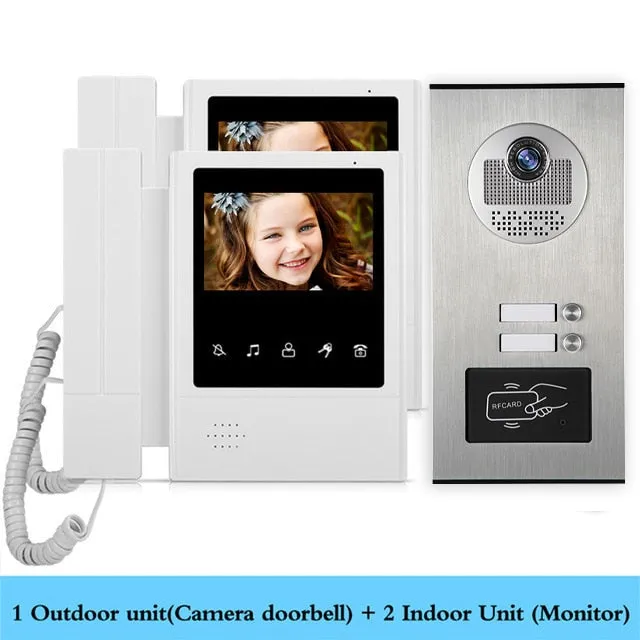

4.3-inch Video Door Phone Intercom System

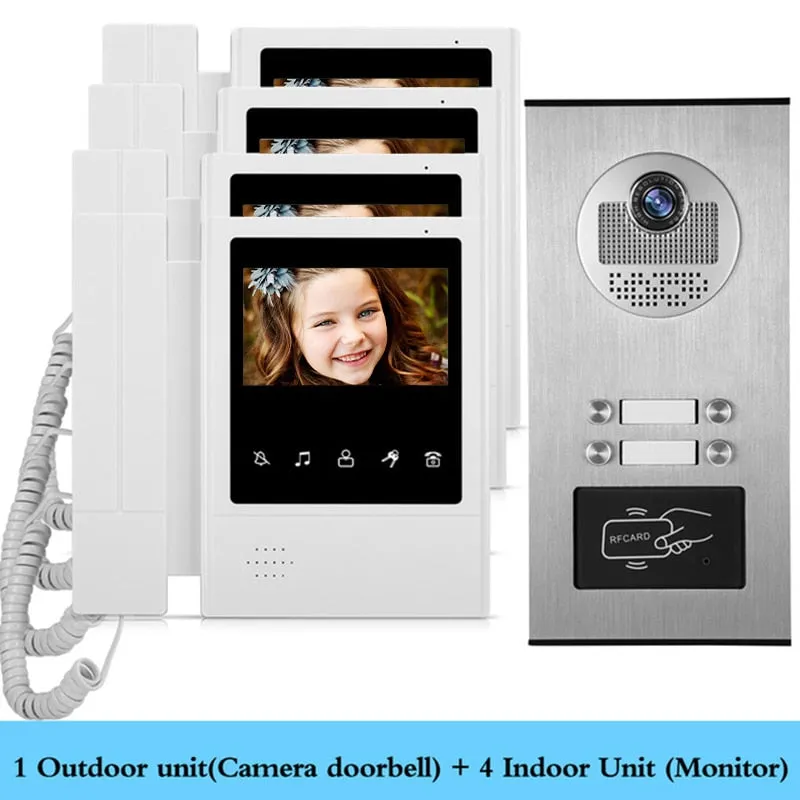

for 2 / 3 / 4 apartments
RFID Camera 4.3'' Monitors
Product Details
1. With 4 wires system connection. Using a 4-core cable to connect the camera and monitor.The max distance is up to 100 meters. For different distances, use different diameter cables, please check the following form to choose the corresponding cable. ( We will send 5 meters cable to you to test, for the longer cable, need to buy by yourself when installing)
2. Multiple ringtones - free switch
The 25-chord ringtones can be switched freely, elegantly, and fair-sounding. Both the ringtones and volume can be adjustable, and can meet the original needs of your time. Don't need to worry about can't hear a voice or hearing it too loud anymore.
3. SupportTwo-way radio Intercom and Indoor Monitoring
When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk outside, press the answer button again to turn it off. If you do not press the button after the conversation is finished or if no one answers the call, the monitor will turn off automatically after the 60s.
4. IR Night Vision
The outdoor camera has built-in 4 IR LED lights. With this function, you can see outside no matter day or night. Keep your home safer.

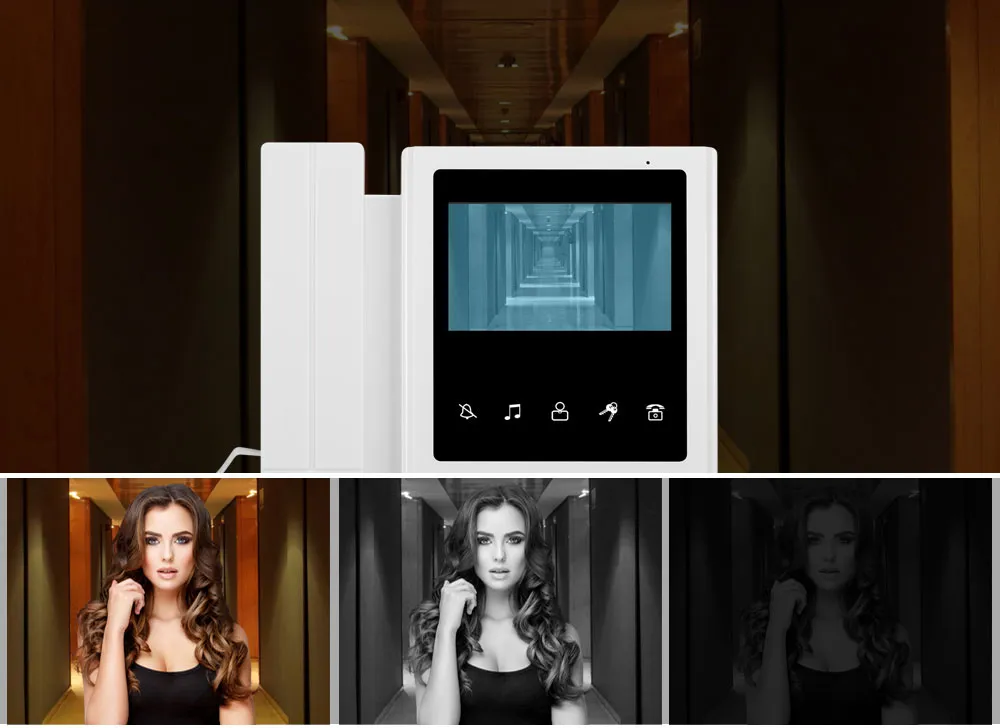

Induction white light effect IR infrared night vision effect without night vision effect
(colored picture, the night
vision effect is the best)

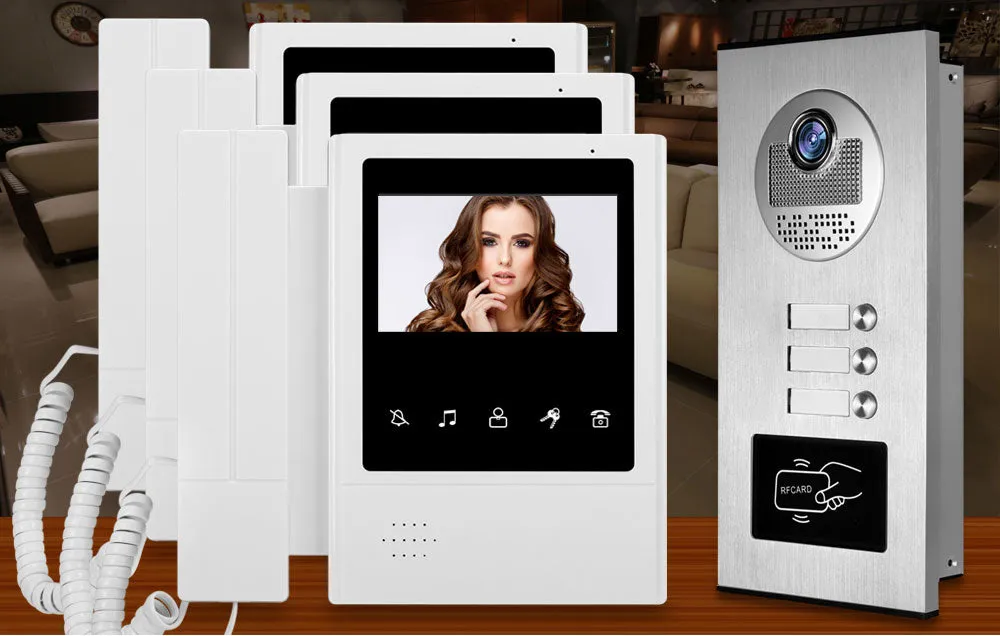

5. Very suitable for multi-apartment/ families

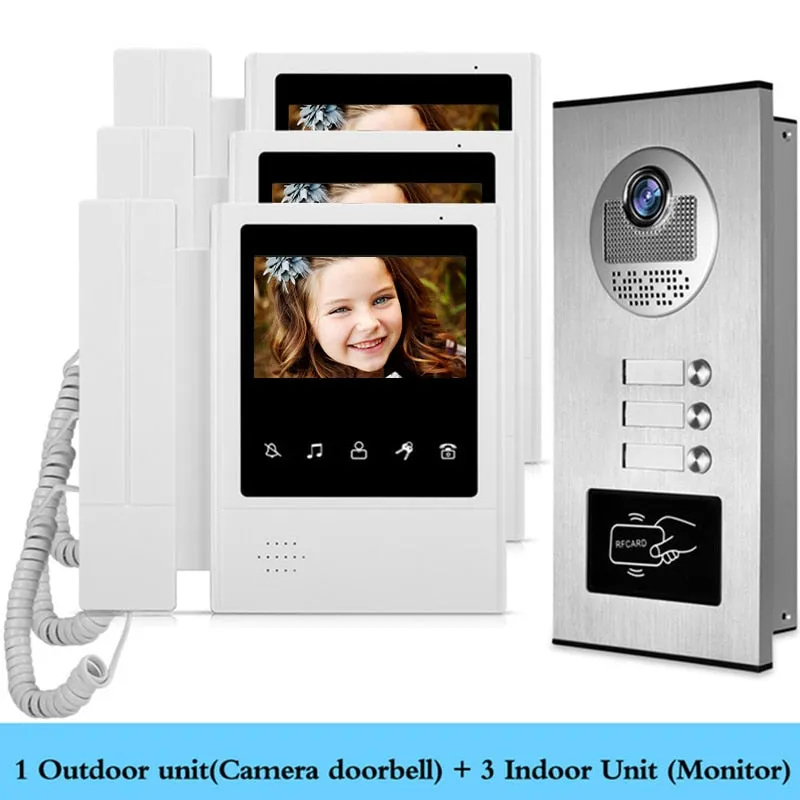

Like as below, there are 3 call buttons on the outdoor camera, and each call button can only connect and talk with only one indoor monitor screen.
We have a camera with 3 / 4 / 6 / 8 / 10 / 12 buttons too.
- 2-6 key dimensions: 265mm*128mm*48mm
•mounting dimensions: 245mm*117mm*35mm - 8-12key dimension: 331mm*128mm*48mm
•mounting dimensions: 310mm*117mm*35mm
6. One key to unlock
This video intercom can connect to the electric lock. You can open the door with both the indoor monitor and the outdoor camera. Very convenient!
( Note: The lock is not included in the package, need to buy extra)
You can press the unlock button on the monitor to open the door from the inside.

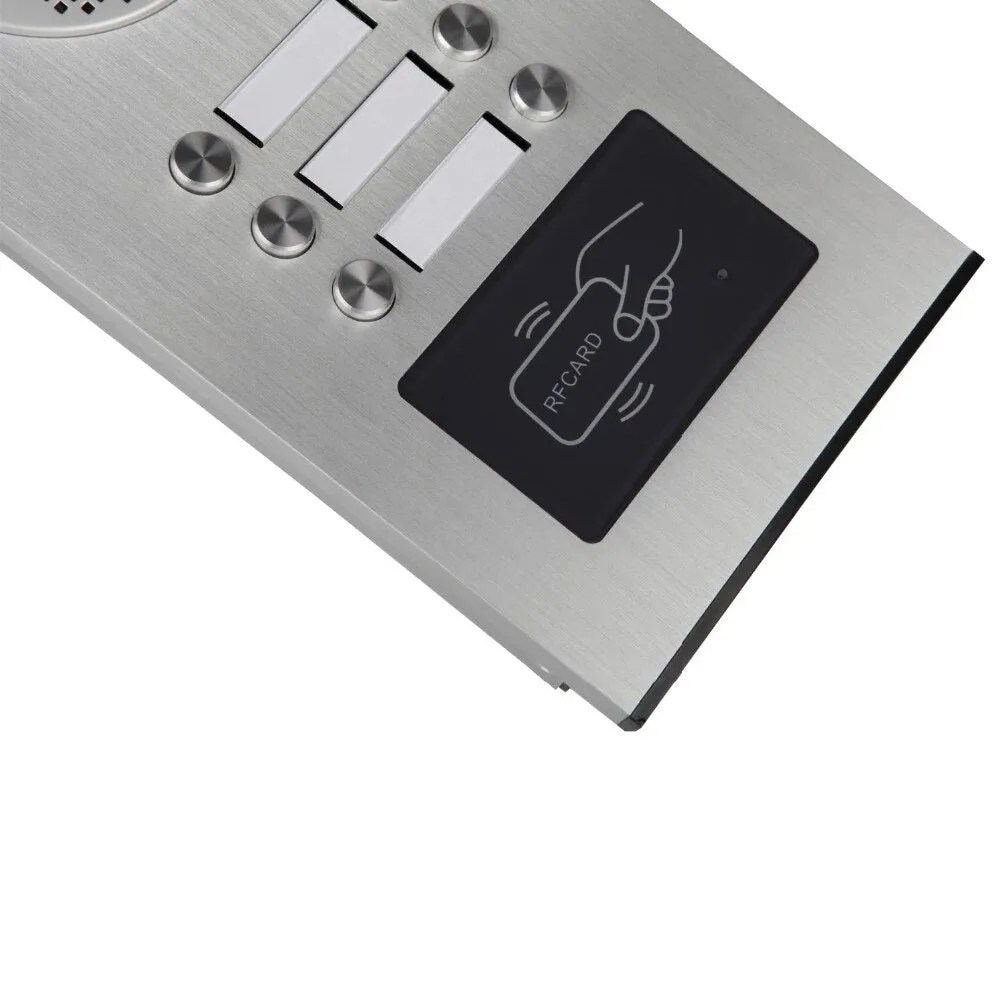

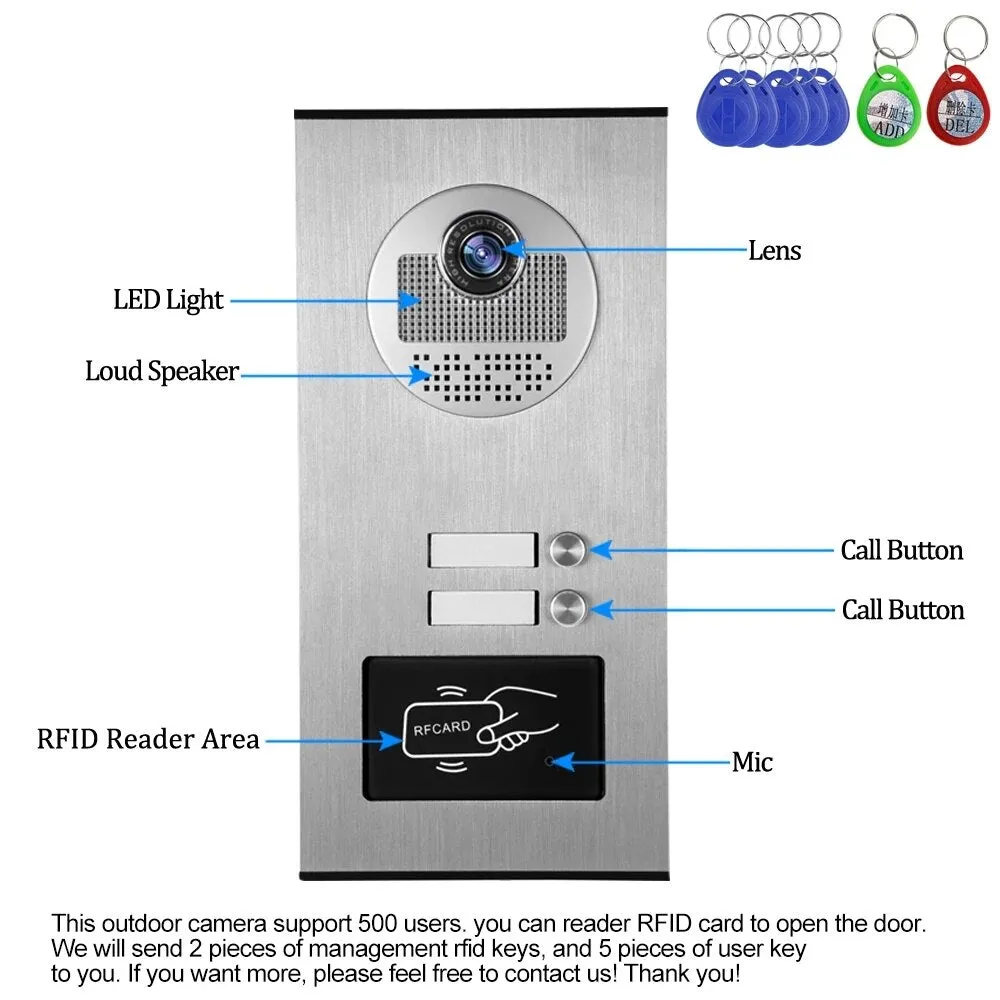

The outdoor camera build-in an RFID reader, with this function, you can open your door with the RFID key card from outside. Item support 500 user cards.
Product Analysis
Technical Parameters
|
Outdoor Camera |
|
|
Camera Resolution
|
700TVL |
|
Night Vision |
Up to 2 meters |
|
Working Temperature |
-20 °C ~ 60 °C |
|
View angle |
85 to 90° |
|
User Capacity |
500 user cards |
|
Most long-distance |
100 meters |
|
Support |
RFID Card to unlock |
|
Material |
ABS Plastic, Aluminum wire drawing |
|
Wire System |
4 Wire system |
|
Model |
XSL-530 |
|

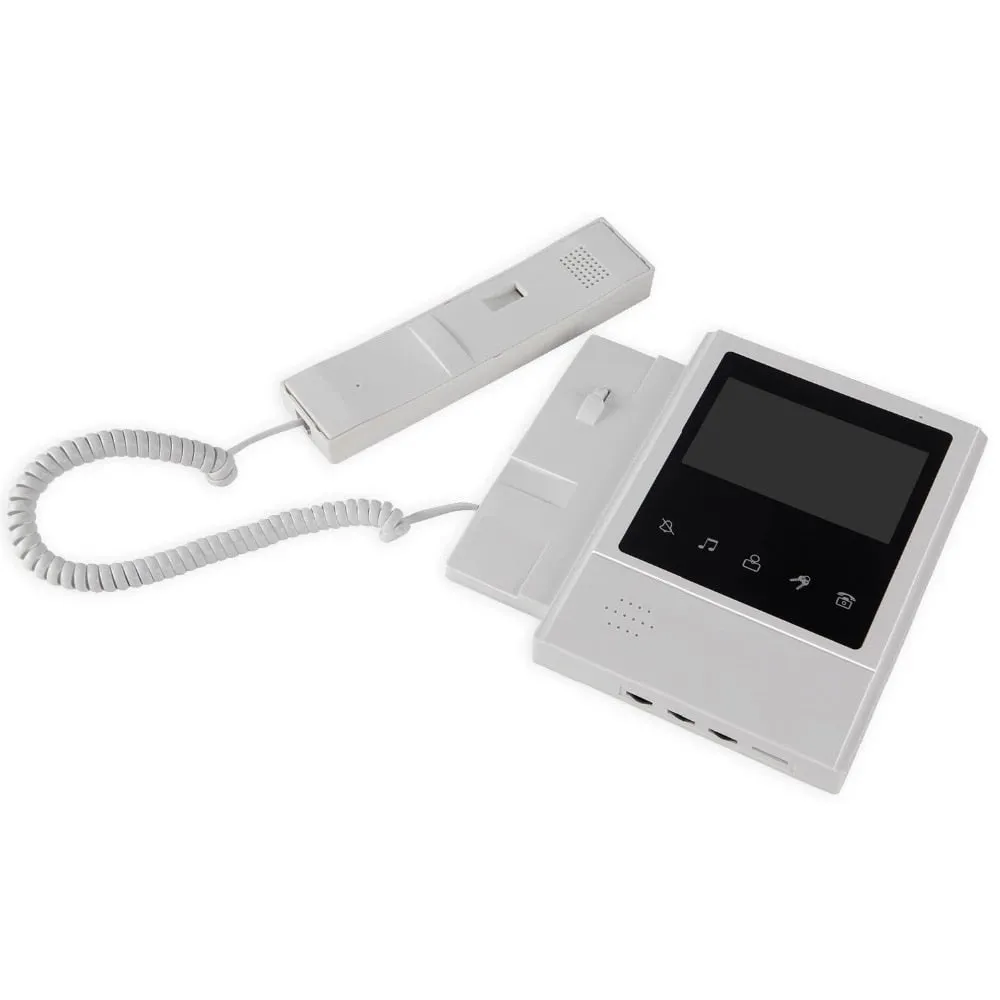

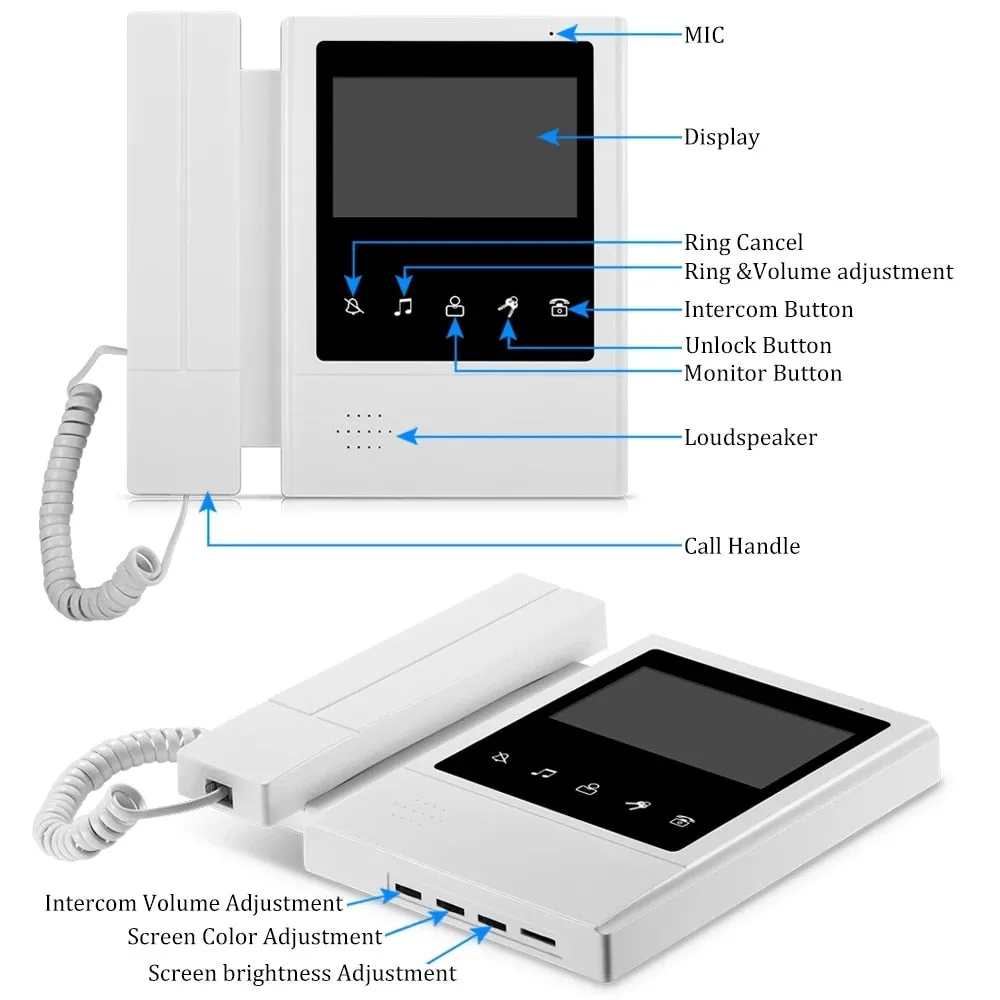

Indoor Monitor |
|
|
Screen |
4.3" color TFT-LCD |
|
Effective Pixels |
800 x 480 |
|
Wiring |
4-wire pin end |
|
Room to Room Intercom |
Yes |
|
Adapter Input |
AC100 - 240V 50-60HZ |
|
Adapter Output |
DC 15V 1500mA |
|
Case |
ABS Plastic |
|
Working Temperature |
-20 °C ~ 60 °C |
|
Installation |
Wall mounted |
|
Dimension |
185mm(L) x 30mm(W) x 195mm(H) |
|
Function |
Intercom, monitor, unlock the door |
|
Model |
XSL-V168 |

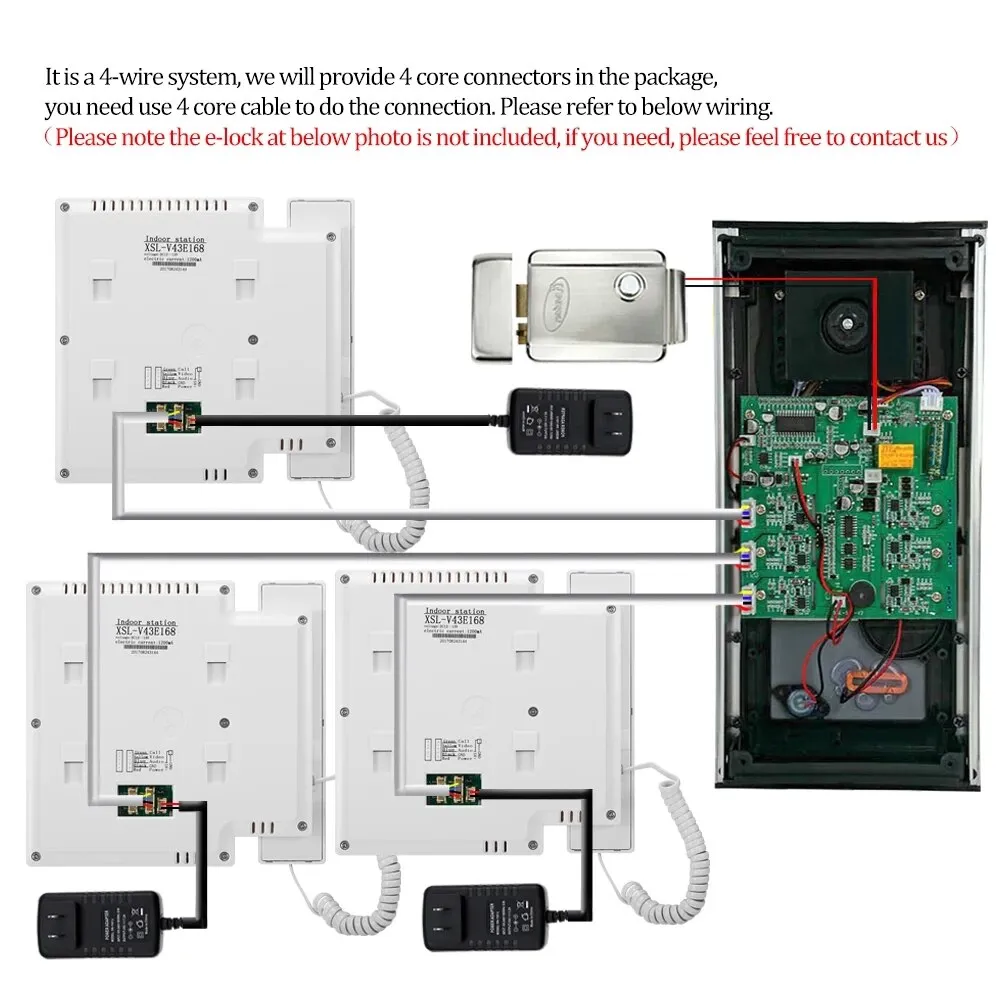

Wiring diagram
( The NO type lock can be connected to the camera directly. But the magnetic lock and bolt lock need connect to an extra DC12V power supply. Both the locks, power supply, and exit buttons are not included in this package. If you need it, please contact us.)
Wiring diagram1
Wiring diagram2
