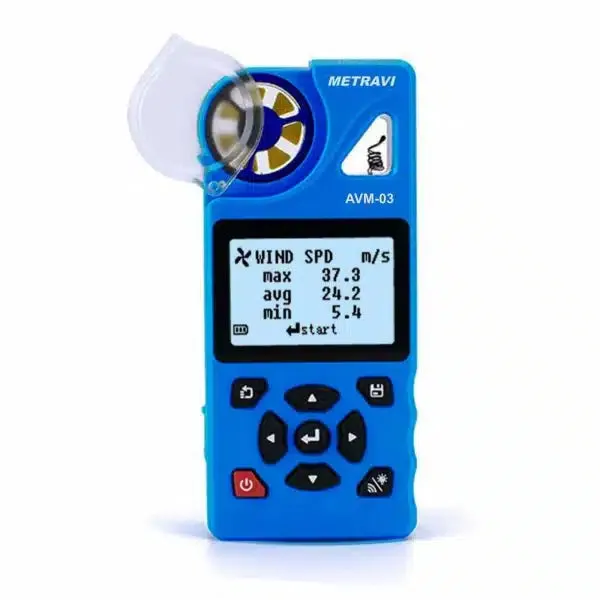

The Metravi AVM-03 Multifunction Anemometer is a versatile device designed for measuring air velocity, airflow, and other environmental parameters with advanced datalogging capabilities. It is equipped with WiFi and USB interfaces, making it easy to transfer data and analyze results. This anemometer is ideal for HVAC technicians, environmental researchers, and engineers who need precise measurements of airflow in various industrial, laboratory, and field applications. Below are the detailed specifications and features of the Metravi AVM-03:

Key Specifications:

• Model: AVM-03
• Brand: Metravi
• Measurement Parameters:
  • Air Velocity: Measures wind speed in different units.
  • Air Flow: Calculates the volume of air passing through a duct or area.
  • Temperature: Measures ambient temperature, which is useful for understanding airflow conditions.

Measurement Ranges:

• Air Velocity:
  • Range: 0.2 - 30.0 m/s (meters per second)
  • Units: m/s, km/h, ft/min, knots, mph
  • Accuracy: Typically around ±3% of reading for air velocity.
• Air Flow (Volume):
  • Range: 0-99999 CFM/CMM (cubic feet/min or cubic meters/min)
  • Area Input: Users can input duct area to calculate flow rate.
• Temperature:
  • Range: -20°C to 60°C (-4°F to 140°F)
  • Accuracy: Typically ±1°C or ±1.8°F.

Features:

• Datalogging Capability:
  • Internal Memory: Stores measurement data for later retrieval.
  • Data Interval Settings: Adjustable data logging intervals for customized measurement sessions.
• WiFi and USB Interface:

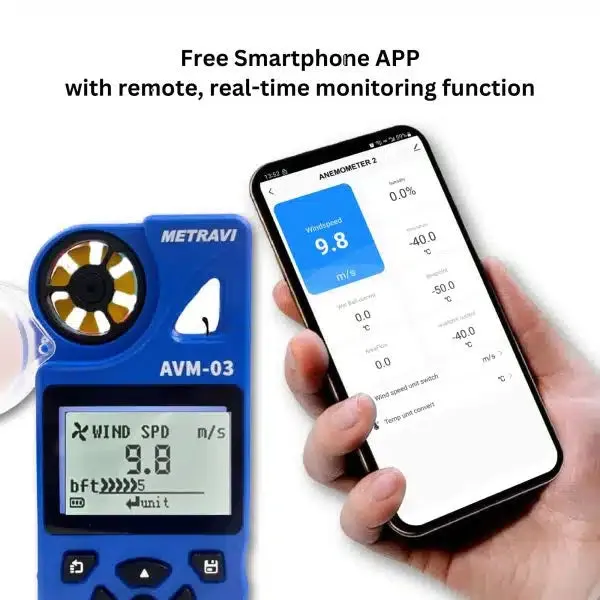

  • WiFi Connectivity: Allows for real-time data transfer to compatible devices for remote monitoring and analysis.

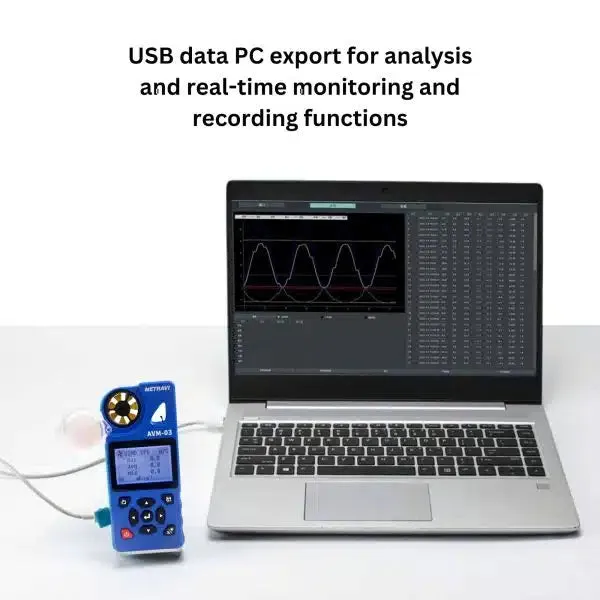

  • USB Interface: Enables easy data transfer to a computer for detailed analysis and report generation.

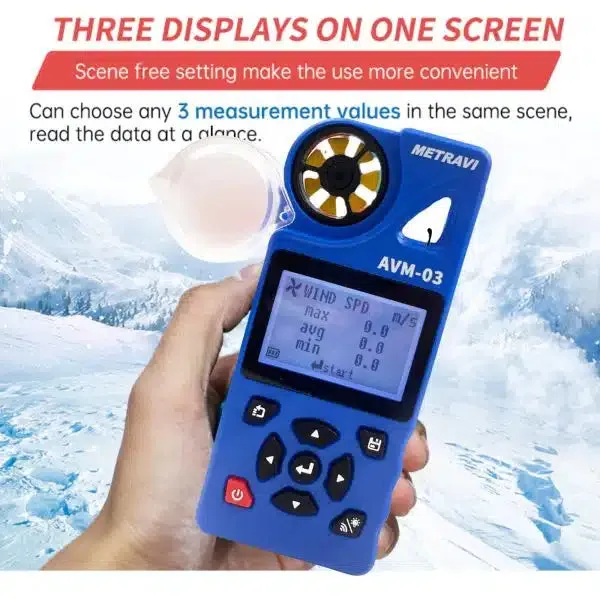

• Digital Display: Large, backlit LCD screen for clear reading of measurements, even in dimly lit environments.
• Data Hold Function: Freezes the displayed readings for easy observation and recording.
• Max/Min/Avg Function: Captures maximum, minimum, and average readings for thorough analysis.
• Auto Power Off: Automatically shuts down after a period of inactivity to conserve battery life.

Power Source:

• Battery Operated: Uses standard batteries for portable use in various environments.
• Battery Type: Typically powered by 9V or AA batteries.
• Low Battery Indication: Alerts the user when the battery is running low, ensuring continuous operation.

Safety and Compliance:

• Durable Design: Constructed for industrial use with a robust and ergonomic design.
• Certifications: Conforms to industry standards for environmental measuring instruments.
• Operating Temperature Range: Suitable for use in various climates, whether in indoor settings or outdoor field measurements.

Physical and Design:

• Compact and Portable: Lightweight design, making it easy to carry and handle during field measurements.
• Color: Typically comes in a rugged blue or black finish.
• Warranty: One year against manufacturing defects.

Applications:

The Metravi AVM-03 Multifunction Anemometer is ideal for:

• HVAC Testing: Ensures proper airflow in heating, ventilation, and air conditioning systems.
• Environmental Studies: Measures wind speed and air flow for research purposes.
• Industrial Use: Monitors airflow in ducts, exhaust systems, and other industrial applications.
• Agriculture: Useful for assessing environmental conditions in greenhouses and other controlled environments.
